3. Results: Dust-Free Case

Integration of the dust-free case was carried out for six model days with the initial conditions. As shown in Figure 2, regular diurnal variations are observed for total energy and amplitude of total kinetic energy is almost constant throughout the six days. By day 6, the model atmosphere is considered to be in an energetically equilibrium state. The results obtained for day 6 of the simulation are described in the following subsections.

  1. Diurnal Changes of Horizontal Mean Fields
  2. Circulation Structure of Convection
  3. Magnitude of Surface Stress
  4. Intensity of Convection

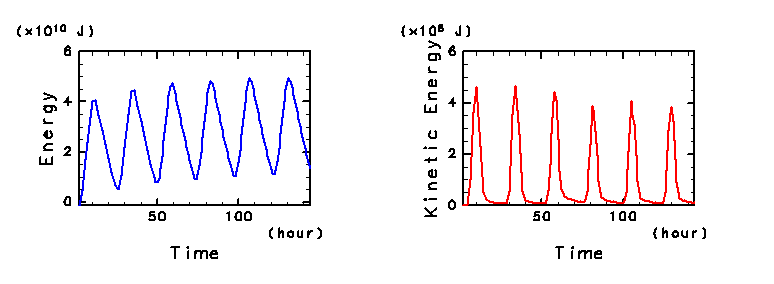

Figure 2: Time series for total energy (left panel) and total kinetic energy (right panel).


A numerical simulation of thermal convection in the Martian lower atmosphere with a two-dimensional anelastic model
Odaka, Nakajima, Ishiwatari, Hayashi,   Nagare Multimedia 2001
